Online Fiber Laser Marking Machine

FFN-II Series, it's able to mark on fast moving products and conduct 24 hours continuous working in adverse environment, no consumables, maintenance-free.

Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)

E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)

Product Introduction

It's able to mark dot matrix or scribbling laser encoding with high quality on fast moving products and meet the demands of all kinds of assembly lines.

Small volume, the professional stand can be installed on the assembly line, easy adjustment;
Friendly man-machine dialogue interface, easy operation, without bothering for the operators altering;
High electro-optic conversion efficiency, less consumption, long life, save a lot of processing costs for our clients;
With open date interfaces, it can be used for our clients to communicate with logistics system through communications protocols;
Professional industrial laser, faster marking speed and consistent marking, high reliability, operated continuously in 24 hours, meet the demands of mass processing and production;


It's widely used in packaging industry, such as anti-counterfeiting laser marking in pharmaceutical industry, anti-counterfeiting traceability system in alcohol industry, anti-counterfeiting marking in food, drink and tobacco, daily hygiene products marking, smart card information marking and pipe online marking.


Technical Parameters

Models No. FFN-II/10/20/30
Optical Properties Rated Output Power
10W
20W
30W
Laser Operating Mode Q-switched pulsed fiber laser
Wavelength 1064nm
Output Power Tunability 5~100% or 10~100%
Repetition Frequency Range 20~60kHz or 20~80kHz
Output Power Stability
<5% or <3%
Output Beam Diameter 7±1mm
Output Beam Quality(M2 <1.5 (after beam expander)
<1.8 (after beam expander)
Max. Single Pulse Energy(mJ) 0.5@20kHz
1.0@20kHz
1.0@30kHz
Cooling System Internal air cooling
Scanner Properties Max. Marking Speed ≤15000mm/s
Repeatability ±0.001mm
Min. Line Width 0.03mm
Min. Character 0.15mm
Max. Marking Depth 0.8mm
1.0mm
Marking Characteristics Pilot Laser Red laser/650nm/5mW
Focal Distance 160mm±2mm (standard&optional)
Marking Area 110*110mm (standard&optional)
System Properties Rated Power
0.4kW
0.6kW
Power Supply
AC 220V/50~60Hz
Working Environment 0~35°C, Humidity ≤90%

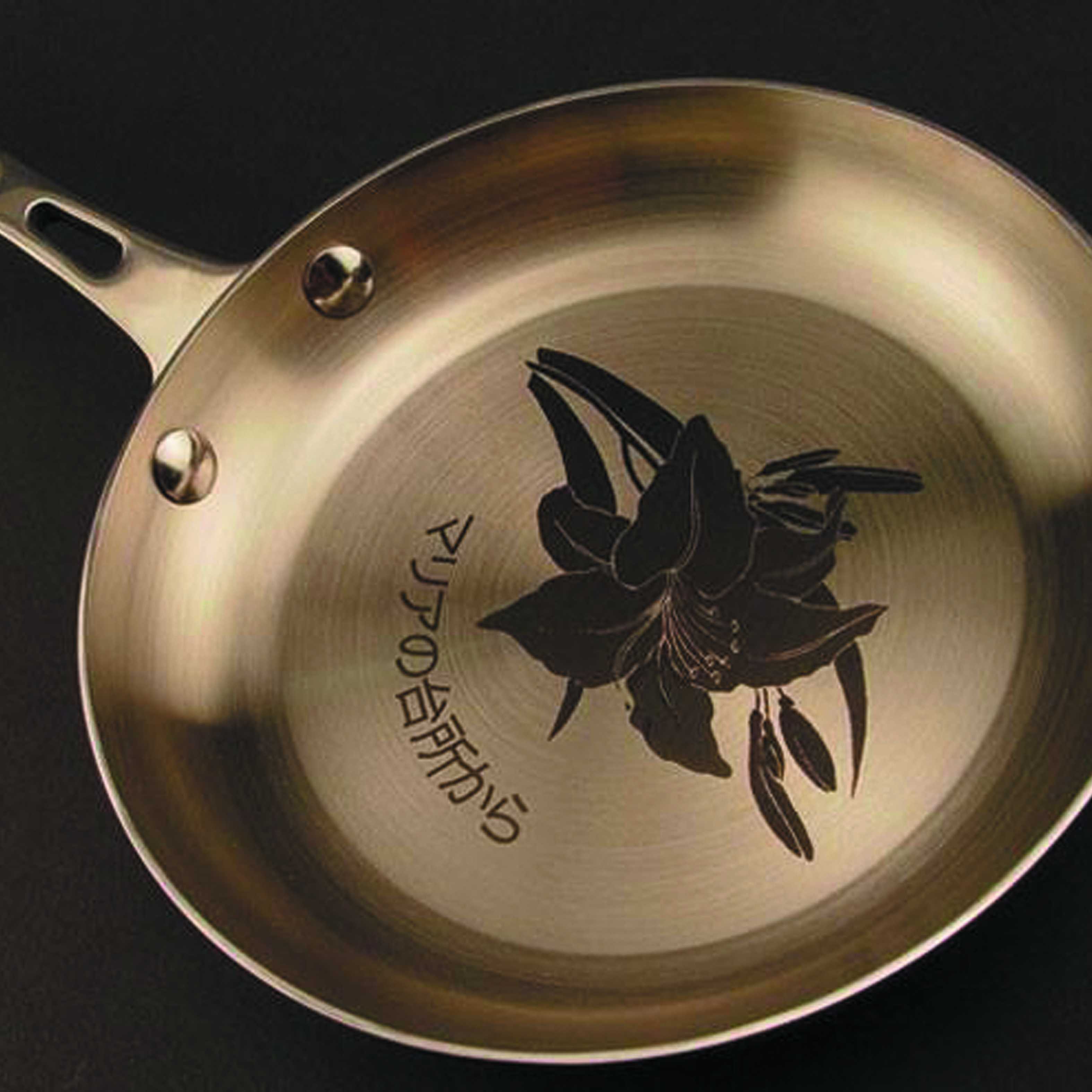

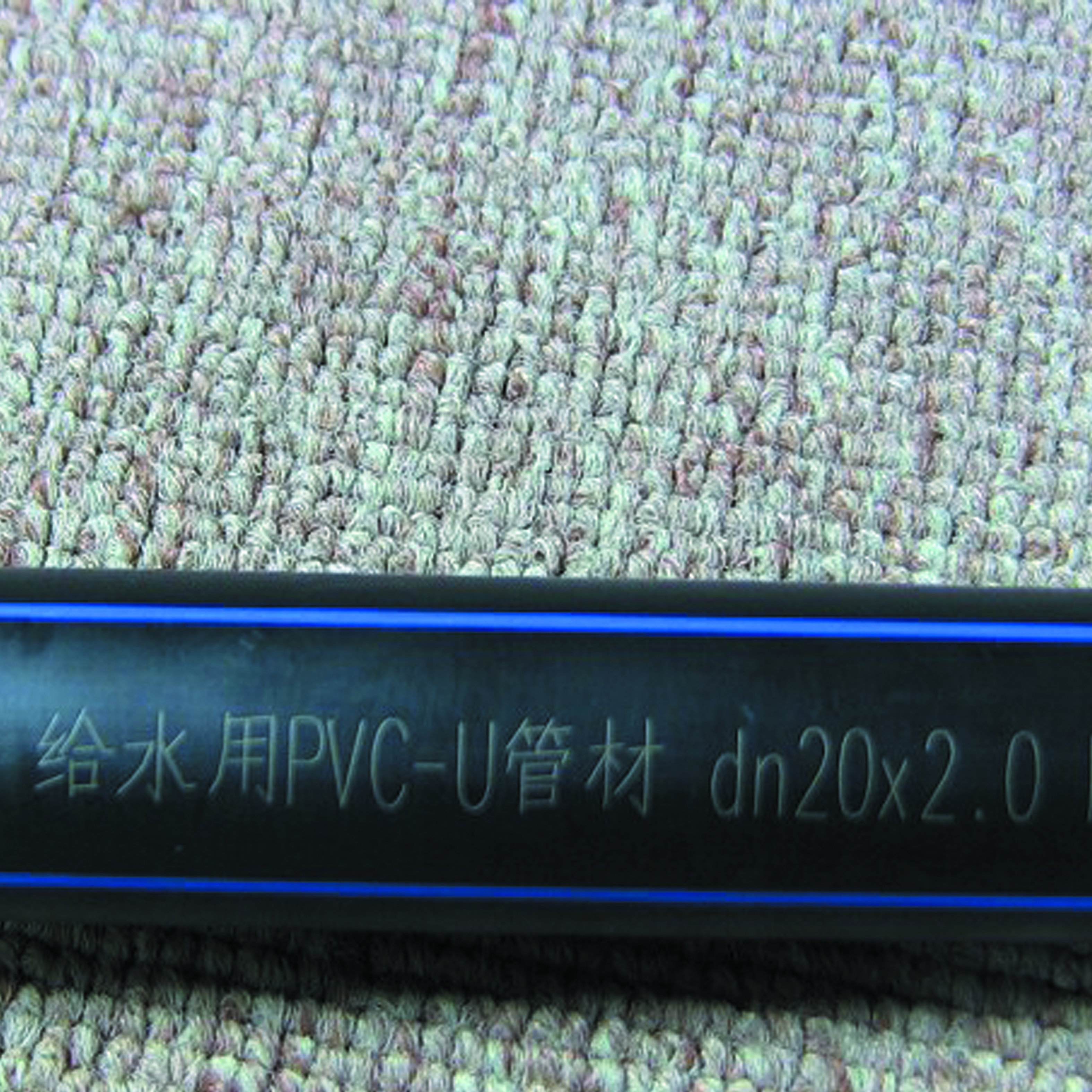

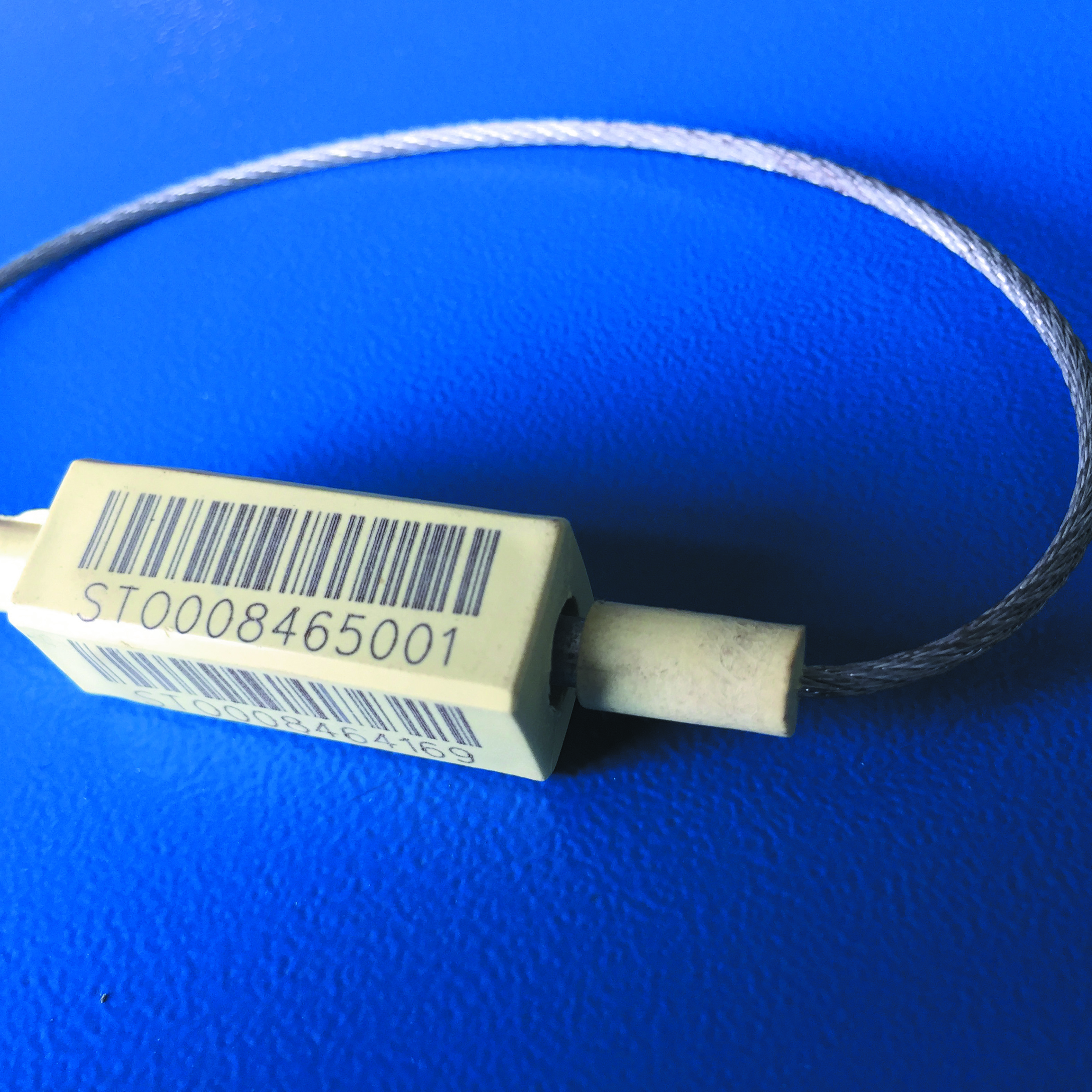

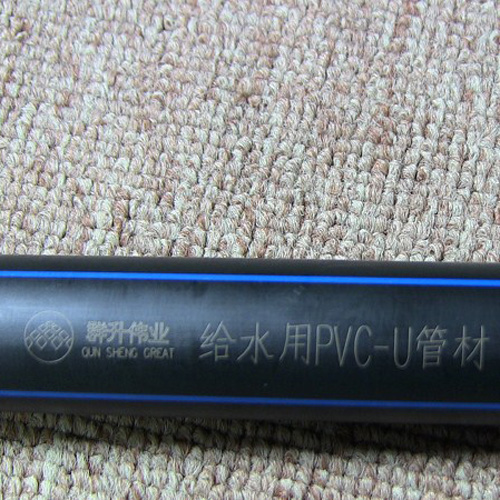

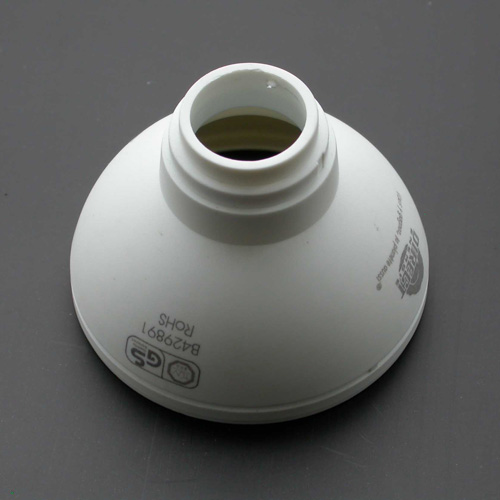

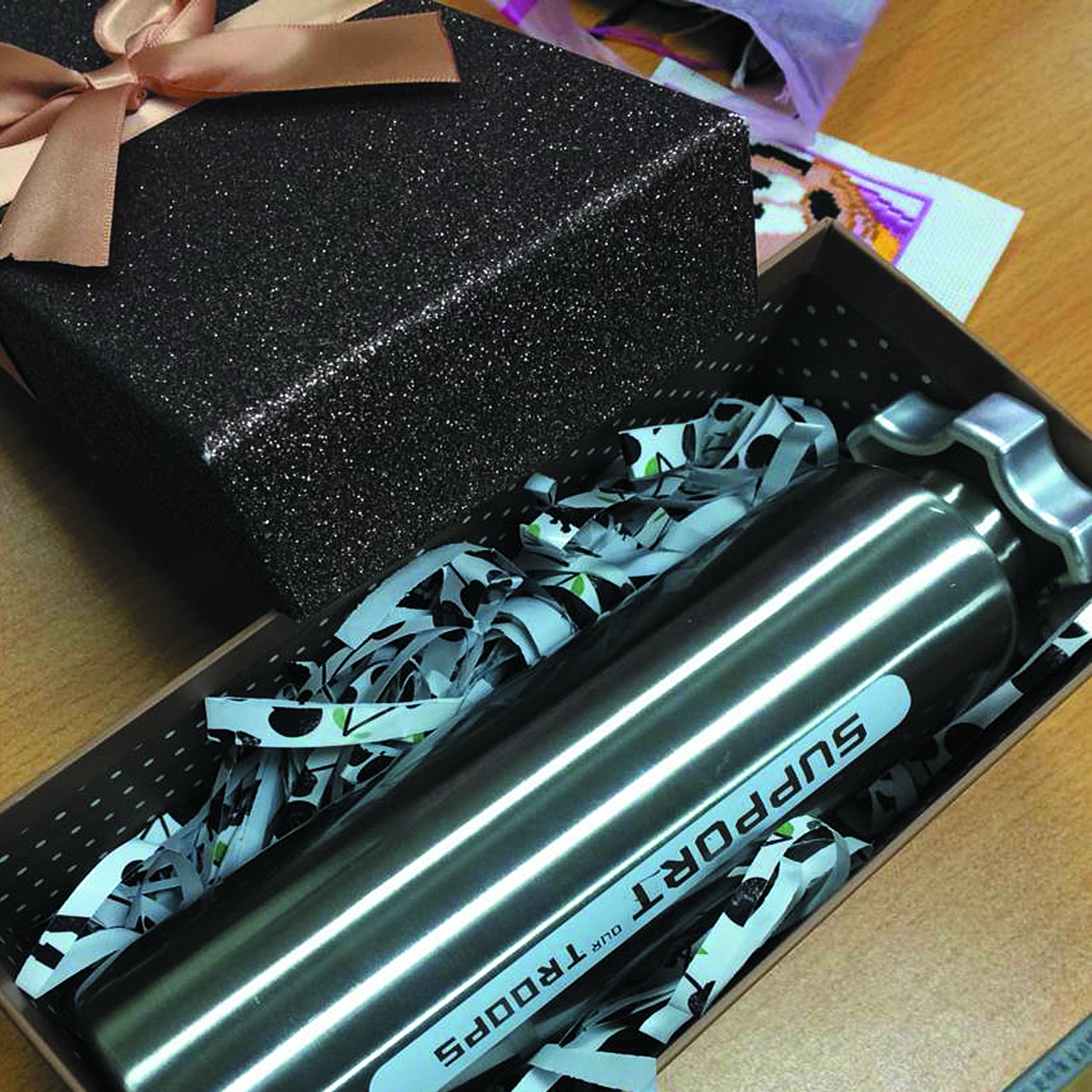

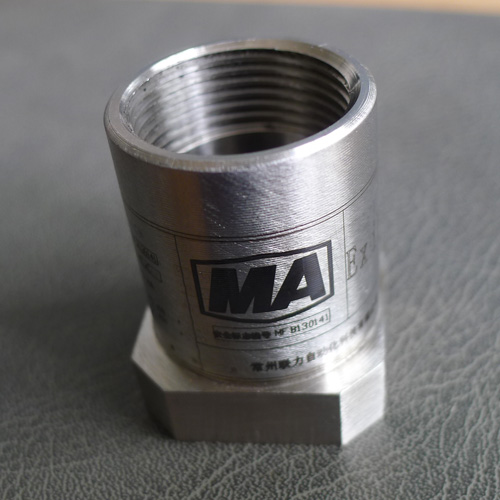

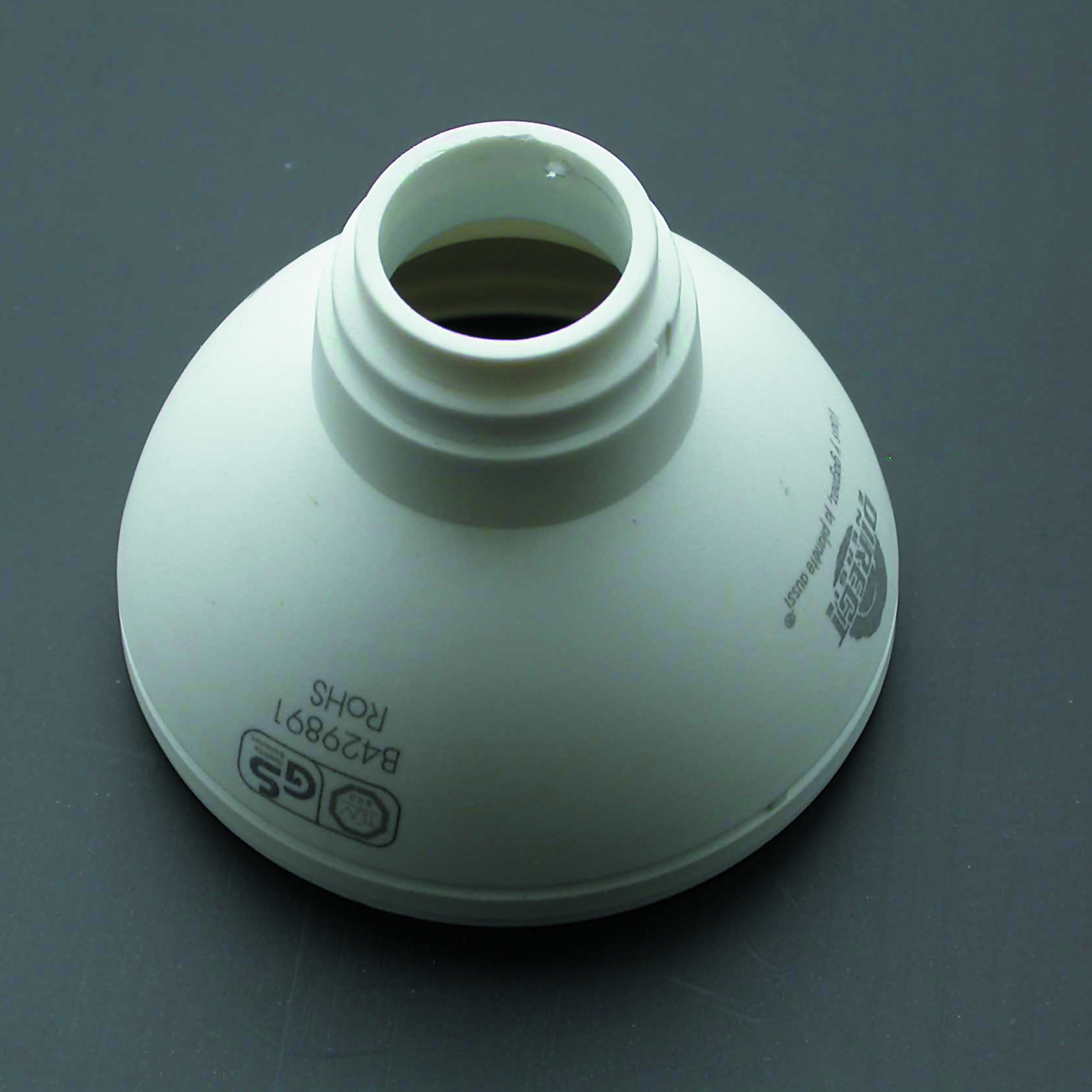

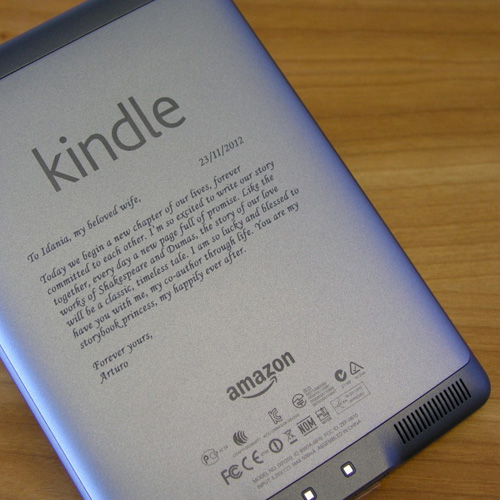

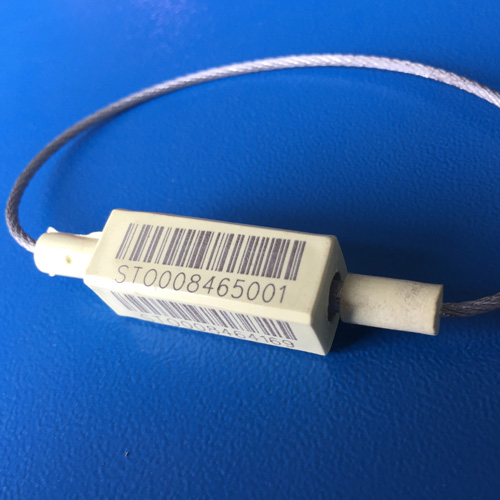

Samples Display
